Polyurethane Foam Decoration Outdoor Wall Sandwich Panels Exterior Composite Wall Metal Siding for House Renovation
We operate our own factory with 4 production lines, capable of manufacturing 10,000㎡ per day to ensure timely delivery and competitive pricing. Choose from hundreds of ready-made patterns or provide your own design/RAL color code for fully customized finishes. Two workers can install up to 300㎡ per day thanks to the smart groove joint system and concealed screw design — no visible screws or exposed fasteners.
MOQ: 1,500㎡ (suitable for 20ft container)
- Overview
- Product Description
- Product Parameter
- Product Advantages
- Application Scenarios
- FAQ
- Inquiry
- Related Products
Product Description

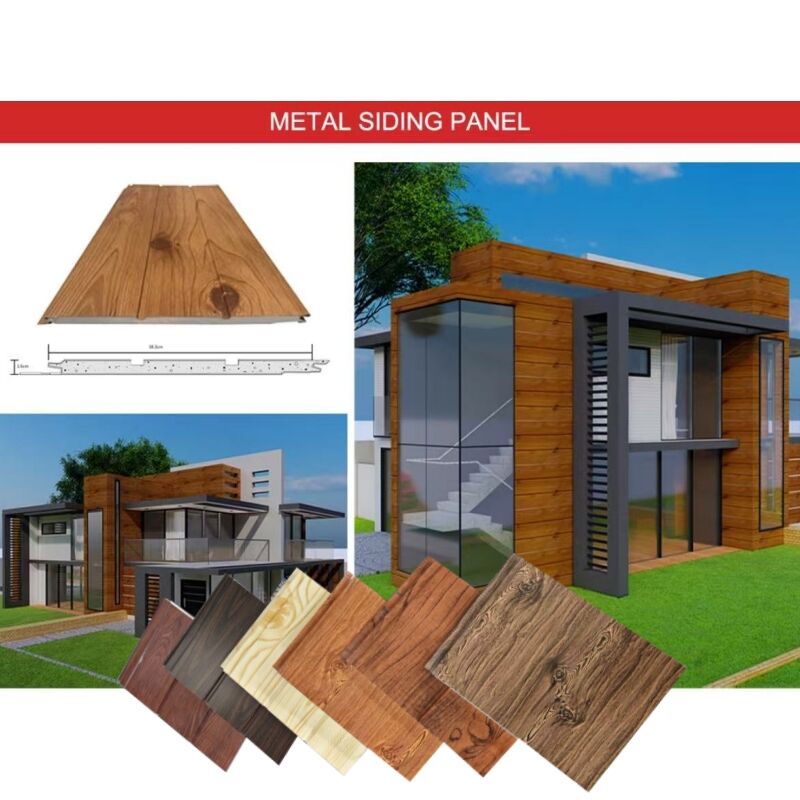

Polyurethane Sandwich Panel | Premium Decorative Metal siding panel

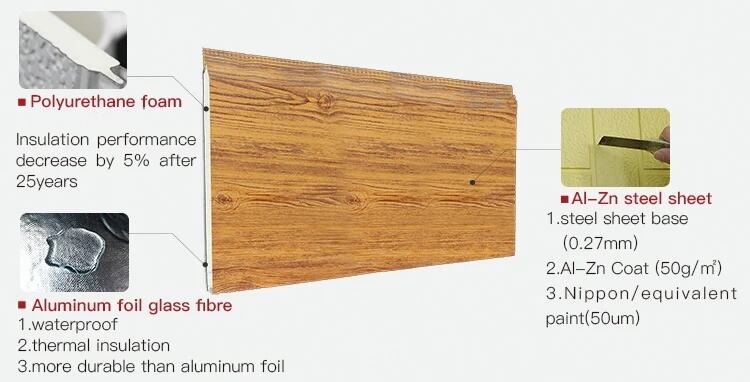

Experience superior thermal insulation & stunning aesthetics with our PU core sandwich panels. it combines aluminum and zinc alloy with 16 mm high-density polyurethane foam for superior thermal insulation and soundproof. The added aluminum foil layer keeps moisture out, ensuring durability. Ideal for both exterior and interior applications, choose our house metal siding for unmatched quality and performance. Ideal insulated metal panels for facade cladding, roofing, and architectural metal caeved panels. Combines energy efficiency, fire resistance (Class A/B), durability, and rapid installation. Perfect for commercial buildings, industrial cladding, cold storage, and modern residential projects. Low maintenance, weather-resistant, and eco-friendly. Explore custom finishes & high R-value solutions today!
Product Parameter
| Surface Material: | Alu-Zn Galvanized Sheet |
| Core material: | Rigid Polyurethane Foam |
| Back Material: | Hard Moisture-proof Aluminum Foil Paper |
| Length: | Customized (2-5.8 meters is recommended for convenient transportation) |
| Standard thickness: | 14mm/16mm/20mm/25mm/30mm |
| Width: | 383mm |
| Basic color: | Solid color, brick grain, stone grain, wood grain,Marbling or customized |
| Insulation performance: | Heat transfer coefficient≤0.018-0.024w/(m.k) |
| Core material density: | 42KG/m³ |
| Steel coil thickness: | 0.2-0.25mm |
| Zinc content: | 40-50g/m² |
| UV coating: | 50μm |
| Compressive strength(Kg/m2) | 0.2-0.7 |
| Recommended galvanized layer: | 150/m2 Hot aluminumzinc plating |
| Thermal resistance: | 0.44(m2-k)/W |
| Freeze-thaw resistance: | 0.18MPa |
| Wind load performance: | The test wind load value is 9 kPa. The sample is not damaged |
| Fire-proof level | Grade B |
| Application: | Hotel,Villa,Apartment,Building,Hospital,School,Mall,External,Internal,Roofing,Prefabricated House. |
| Installation method: | 1.Horizontal(horizontal)2.Vertical 3.Aluminium alloy fittings |
| Advantage | Fire resistant,Waterproof,Thermal Insulation,Soundproof,Earthquake proof,Eco-friendly,Flame Retardant,Easy Installation. |
| MOQ | 100 Square Meter |
| Payment Terms | T/T(30% as deposit and 70% be paid before loading)L/C(100% Irrevocable L/C at sight) or other payments can be negotiated. |
| Packaging Details | Carton or kraft paper, support customization8 PCS/CTN,10 PCS/CTN |
| Lead Time | 3-7days. Customized products 7-25 days. |
Product Advantages
Unmatched Insulation
Featuring a rigid PU foam core with an ultra-low thermal conductivity, our insulated wall panels and insulated roof panels deliver superior thermal insulation performance, significantly reducing energy costs for heating and cooling. Ideal for creating energy efficient building envelopes.
Lightweight Yet Strong
The unique sandwich panel construction combines the high insulation properties of PU with the durability of pre-painted galvanized steel or aluminum zinc coated steel facings. This results in a lightweight building panel offering excellent load-bearing capacity and structural integrity.
Exceptional Fire Safety
Our PU core sandwich panels utilize advanced fire-retardant formulations, achieving excellent fire resistance ratings (e.g., Class B / Class A) for enhanced building safety.
Durable & Weatherproof
The robust metal cladding panels provide outstanding resistance against corrosion, impact, UV radiation, and harsh weather conditions, ensuring long-lasting performance and minimal maintenance. Perfect for demanding architectural metal cladding.
Aesthetic Versatility
Available in a wide range of profiles (including smooth, embossed, and woodgrain patterns) and RAL color coated finishes, our metal decorative panels offer architects and builders unparalleled design flexibility for stunning building facades and interiors.
Fast & Efficient Installation
Designed as prefabricated building panels, they enable rapid, dry construction, reducing overall project timelines and labor costs significantly.

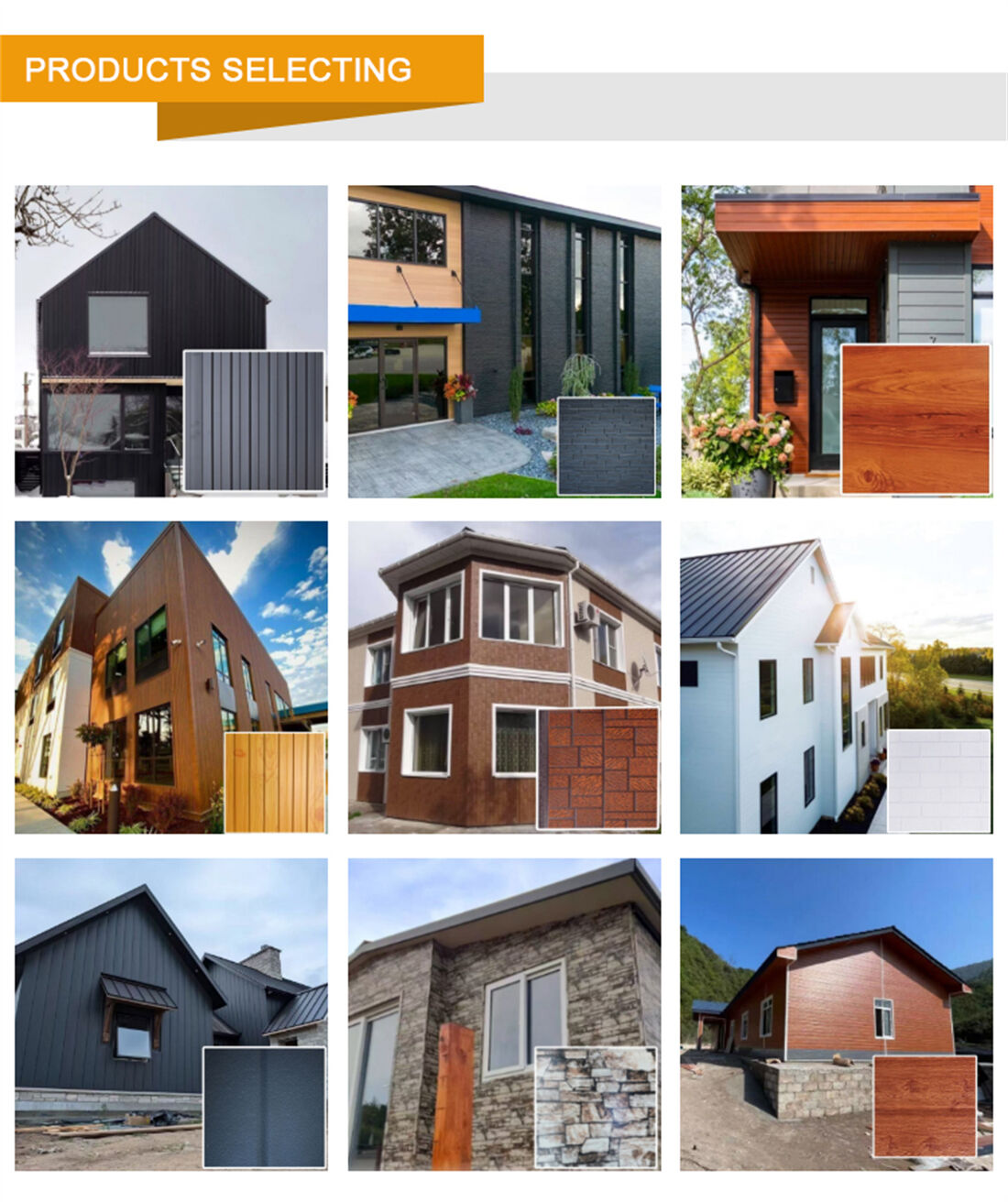

Application Scenarios
Our decorative Polyurethane Core Metal Panels are the perfect choice for:
1.Commercial Building Facades (Offices, Showrooms, Malls)
2.Industrial Building Cladding (Factories, Warehouses, Logistics Centers)
3.Cold Storage & Refrigerated Warehouses
4.Clean Rooms & Pharmaceutical Facilities
5.Agricultural Buildings
6.Retail Outlets & Supermarkets
7.Residential Accents & Modern Homes
8.Renovation & Retrofit Projects (Over existing facades)
9.Partition Walls & Interior Features
Commitment to Quality：
Our PU insulated Sandwich panels and insulated roof panels are manufactured under strict quality control, We offer custom fabrication to meet specific project dimensions and architectural visions.
Upgrade your next project with the ultimate combination of beauty, performance, and efficiency. Discover how our decorative polyurethane sandwich panels can transform your building envelope into a high-performing, aesthetically stunning asset. Request samples, technical data sheets, or a quote today to experience the difference premium metal cladding solutions make. Invest in energy-efficient construction with long-lasting, low-maintenance PU core panels – the smart choice for modern architectural metal panels.
FAQ
Q: How do I maintain and clean the panels?
A:Maintenance is very simple. Normally, occasional rinsing with water is sufficient to remove dust and dirt. For tougher stains, a mild detergent and soft cloth can be used. The high-hardness, anti-oxidation surface resists staining and is easy to clean.
Q: Can I get a free sample before placing a bulk order?
A:Yes, we provide free sample panels so you can verify the quality, color, and texture. You only need to pay the shipping cost.
Q: What is the lead time for production and shipping?
A:For standard colors/patterns, the lead time is typically 10-15 days after order confirmation. For custom designs, it may take 15-20 days. We will provide a precise schedule based on your order quantity and requirements.
Q: Are your panels fire-resistant?
A:Yes, our polyurethane core is self-extinguishing and meets relevant international fire safety standards (e.g., B1 grade). Specific test reports can be provided upon request.
Q: What is the R-value or thermal insulation performance?
A:The 16mm PU core offers excellent thermal insulation with a K-value of approximately 0.024 W/m·K, significantly improving energy efficiency for buildings.
Q: Do you provide installation guides or support?
A:Yes, we provide detailed PDF installation guides and video tutorials. Our technical team is also available for online support if you have specific questions during installation.
Q: What is the minimum order quantity (MOQ)?
A:The MOQ for the 16mm thick panels is 1,500㎡, which is optimized for a 20ft container. We can also accommodate larger orders, with a 40ft container holding approximately 3,500㎡.
Q: Can I mix different colors/patterns in one container?
A:Absolutely. You can mix different colors and patterns in a single container to meet your 1,500㎡ MOQ, allowing for greater design flexibility.
Q: What payment terms do you accept?
A:We commonly accept T/T (Telegraphic Transfer) and L/C (Letter of Credit). For established relationships, other terms can be discussed.
